Accessoires fournis

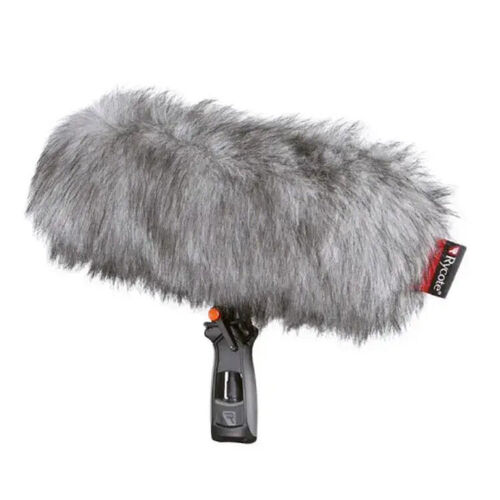

- 1x Deadcat
- 1x Wind Shield
- 1x Rode NTG1 - bag
- 1x XLR cable 0,5 meter
Top specs
- For Indie Films, TV & Documentaries
- Phantom Powered
- Selectable 80 Hz Low-Cut Filter
- Low Handling Noise
- Lightweight Metal Housing
- Frequency range 20 Hz to 20kHz
Le microphone canon Rode NTG1 est un microphone directionnel conçu spécifiquement pour la capture du son dans les films, la télévision et les voix off. Malgré sa conception robuste, le microphone est remarquablement léger, ce qui le rend parfait pour une utilisation avec une caméra vidéo. Le NTG1 est doté d'une directivité super cardioïde et d'un filtre passe-haut intégré (80 Hz, 12 dB/octave). Avec une plage dynamique de 121 dB et une alimentation de 24 à 48 V (alimentation fantôme requise), le microphone ne pèse que 105 grammes.
Rode NTG1 Specs
Microphone
Form Factor | Stand/Boom Mount |
Sound Field | Mono |
Operating Principle | Line Gradient |
Capsule | Condenser |
Diaphragm | 0.5" / 12.70 mm |
Polar Pattern | Supercardioid |
Orientation | End Address |
Circuitry | Solid-State (JFET) |
Pad | None |
High-Pass Filter | 80 Hz, 12 dB/Octave |
Tone Adjustment | None |
Indicators | None |
On-Board Controls | High-Pass Filter |
Windscreen | Foam (Included) |
Performance
Frequency Range | 20 Hz to 20 kHz |
Maximum SPL | 139 dB SPL (1 kHz, 1% THD, 1-Kilohm Load) |
Off-Axis Rejection | 14 dB at 60° 16 dB at 120° 12 dB at 180° |
Impedance | 50 Ohms |
Sensitivity | -36 dBV/Pa at 1 kHz |
Output Level | 6.9 mV (Max) |
Dynamic Range | 121 dB |
Signal-to-Noise Ratio | 76 dB A-Weighted (1 kHz) |
Equivalent Noise Level | 18 dB A-Weighted |
Connectivity
Output Connectors (Analog) | 1 x XLR 3-Pin |
Power
Operating Voltage | 24 to 48 V |
Physical
Color | Black |
Mounting | 3/8"-16 Female, 5/8"-27 Female, Mic Clip (with Included Hardware) |
Construction Material | Aluminum |
Dimensions | ø: 0.87 x L: 8.62" / ø: 22 x L: 219 mm |
Weight | 3.7 oz / 105 g (Microphone) |
