L'Enregistreur Moniteur Atomos Sumo 19" HDR avec un grand écran tactile 19 pouces, lumineux et extrêmement précis en couleur, est un excellent complément pour améliorer les flux de travail vidéo professionnels, tant en production qu'en post-production.

Sur le plateau, les fonctions HDR vous permettent de tirer le meilleur parti de la plage dynamique des caméras cinématographiques lorsque vous filmez en format LOG ou RAW.

De plus, tous les outils de contrôle intégrés sont compatibles avec le rendu HDR et la large plage dynamique de 10 arrêts.

Accessoires fournis

1x SSD Cardreader
2x 4-pins XLR naar D-tap
1x Atomos Sumo19 Sunhood

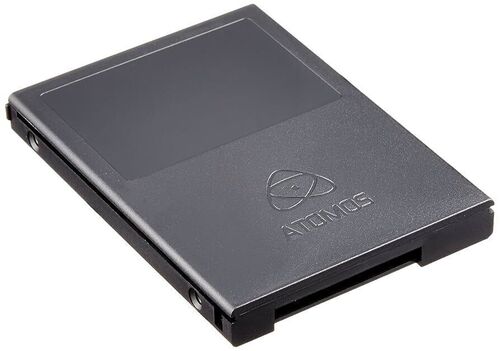

2x Atomos SSD 480GB
1x Swit Duo battery charger
2x Swit V-mount battery 160Wh
1x Atomos Sumo 19" HDR Monitor - Case
1x Matthews monitor mount
1x 15V 6A AC Adapter - 4pin XLR
1x 4x Atomos Sunhood screw
2x Eurostekker

Top specs

1920 x 1080 Touchscreen Display
10-Bit FRC Monitor Processing
HDMI 2.0 and 12G-SDI Inputs/Outputs
1200 cd/m² Brightness

Atomos ATOMSUMO19 Specs

Display
Type	19" / 48 cm IPS capacitive touchscreen
Resolution	1920 x 1080
Bit Depth	10-bit (8-bit plus FRC)
Color Gamut	REC. 709
Video Aspect Ratio	Native: 16:9
Brightness	1200 cd/m²
LUT Support	3D LUT (.cube file format)

Interface
Inputs	1 x HDMI Type A, v2.0 3 x BNC, HD/3G-SDI 1 x BNC, HD/3G/6G/12G-SDI 2 x XLR, balanced analog audio with 48 V phantom power
Outputs	1 x HDMI Type A, v2.0 1 x BNC, HD/3G/6G/12G-SDI 1 x 3.5 mm, stereo headphone

Supported Video Format
Supported Signals	Video: Input: 8/10-bit 4:2:2 (dependent on video source) Output: 8/10-bit 4:2:2 (dependent on video source)
Encoding Formats	Apple ProRes: HQ, 422, LT AVID DNxHR: HQX, HQ, SQ, LB 4096 x 2160 24/25/30/50/60 3840 x 2160 24/25/30/50/60 1080p 24/25/30/50/60/100/120/200/240 1080i 50/60 720p 50/60 Canon (C300 mk2, C500) Cinema-DNG Raw: 4096 x 2160 24/25/30 3840 x 2160 24/25/30 Raw to ProRes/DNx: 4096 x 2160 24/25/30 3840 x 2160 24/25/30 Panasonic (VariCam LT, VariCam35) Cinema-DNG Raw: 4096 x 2160 24/25/30 3840 x 2160 24/25/30 Raw to ProRes/DNx: 4096 x 2160 24/25/30 3840 x 2160 24/25/30 Sony (FS5, FS7 with XDCA-FS7, FS700) Cinema-DNG Raw: 4096 x 2160 24/25/30 2048 x 1080 24/25/30/50/60/100/120 Raw to ProRes/DNx: 4096 x 2160 24/25/30/50/60 2048 x 1080 24/25/30/50/60/100/120/240
Video Signal Conversion	HDMI to SDI: 4096 x 2160 24/25/30/50/60 3840 x 2160 24/25/30/50/60 1080p 24/25/30/50/60/100/120 1080i 50/60 720p 50/60 SDI to HDMI: 4096 x 2160 24/25/30/50/60 3840 x 2160 24/25/30/50/60 1080p 24/25/30/50/60/100/120 1080i 50/60 720p 50/60
Pulldown Conversion	24/25/30PsF to 24/25/30p (2:2 pulldown) 60i to 24p (3:2 pulldown)

Supported Audio Formats
HDMI	2/8-channel, 24-bit (camera dependent)
SDI	Up to 12-channel, 24-bit, 48 kHz
Dynamic Range	> 90 dB
Signal Level	Maximum: +24 dBu
Gain	Maximum Analog Gain: +52 dB

Remote Operation
HDMI	Auto HDMI trigger Supported Protocols: Canon, Sony, Atomos Open Standard
SDI	SDI trigger camera selectable
LANC	Supports slave configuration

Recording Media
Supported Media	4K: 2.5" SSD HD High Frame Rate (50/60/120p): 2.5" SSD 2.5" HDD (7200 rpm and up) for 1080p 50/60 HD (30p and Less): 2.5" SSD 2.5" HDD (5400 rpm and up) Note: Only use media that has been approved by Atomos
Master Caddy Dock	Interface: 2.5" SATA to USB 2.0/3.0
Supported Applications	Final Cut Pro X/7+ Avid Media Composer 5.0+ Adobe Premiere 5.5+ Grass Valley EDIUS 6.0+ Sony Vegas Pro 10+ Lightworks Autodesk Smoke 2015
XML Support	FCPX XML native, FCP7/Adobe supported with conversion

General
Voltage	14.4 VDC
Power Consumption	75 W
Supported Battery Types	V-Mount, Gold Mount (requires optional mounting plate)
Mount Types	1/4"-20: 4 x top, 4 x bottom, 2 x side 3/8"-16: 2 x top, 2 x bottom, 1 x side VESA mount on rear
Dimensions	19.8 x 12.2 x 2.5" / 50.4 x 31 x 6.3 cm (without stand) 19.8 x 13 x 7.1" / 50.4 x 33 x 18 cm (with stand)
Weight	12.3 lb / 5.6 kg (without stand) 13.7 lb / 6.2 kg (with stand)

Téléchargements

Sumo-user-manual
