Supplied accessories

• 1x Gitzo GT3543XLS Systematic series 3 XL, 4 sections

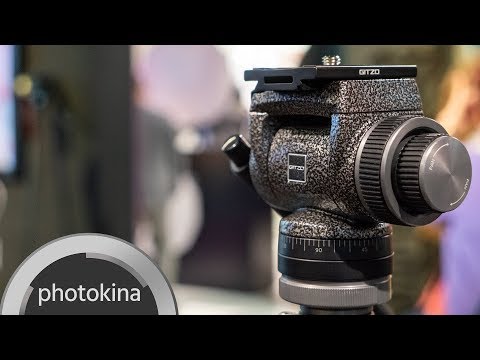

• 1x Gitzo GHF3W 3-way fluid head
• 1x Arca-Swiss tripod plate

Top specs

• Photography tripod with 3-way head
• 3.25 kg
• 22.5 cm Min. Height
• 223.5 cm Max. Height
• Arca-Swiss quick release

Specifications GT3543XLS

WEIGHT

2.29 kg

TOP ATTACHMENT

3/8″ screw

LEG SECTIONS

4XL

MIN HEIGHT

10 cm

MAXIMUM HEIGHT (WITH CENTER COLUMN DOWN)

202 cm

MAXIMUM HEIGHT

202 cm

CLOSED LENGTH

71 cm

BUBBLE SPIRIT LEVEL (NO.)

1

SAFETY PAYLOAD WEIGHT

25 kg

CARRYING BAG INCLUDED

none

CENTER COLUMN

no centre column

UPPER DISC DIAMETER

70 mm

COLOUR

Noir Decor

EASY LINK

Yes

LEG TYPE

Single

LEG ANGLES

23°, 53°, 86°

LEG LOCK TYPE

Twist Lock

LEGS TUBE DIAMETER

21.7, 25.3, 29, 32.9 mm

MATERIAL

CarbonExact

MAXIMUM WORKING TEMPERATURE

70 °C

MINIMUM WORKING TEMPERATURE

-30 °C

SERIES

3

Specifications GHF3W

WEIGHT

0.955 kg

TOP ATTACHMENT

1/4″ screw, Rapidapter Art. 014-38

SAFETY PAYLOAD WEIGHT

13 kg

BASE TYPE

60 mm

BASE DIAMETER

60 mm

FRONT TILT

-70° / +90°

MATERIAL

Aluminium, Magnesium

BUBBLE SPIRIT LEVEL (NO.)

1

PLATE TYPE

GS5370DR

COLOUR

Black/Noir Decor

DEGREES OF ROTATION FOR EACH FULL TURN OF HANDLE

360 °

EASY LINK

No

HEAD TYPE

3 Way Head

INDEPENDENT PAN LOCK

yes

INDEPENDENT TILT LOCK

yes

LATERAL TILT

-30° / +90°

MAXIMUM WORKING TEMPERATURE

70 °C

MINIMUM WORKING TEMPERATURE

-30 °C

PAN DRAG

NONE

PANORAMIC ROTATION

360 °

QUICK RELEASE

Yes

TILT DRAG

NONE

WORKING HEIGHT

11.5 cm
