Supplied accessories
- 1x Canon CN-E 18-80mm Sunhood
- 1x 77mm Lenscap
- 1x 77mm UV filter
- 1x Canon EF lens mount cap
- 1x Canon CN-E 18-80mm T4.4 - Case
- 1x Canon ZSG-C10 Zoom Grip
Top specs
- Covers Super 35 & APS-C Formats
- EF Mount
- T4.4 Constant Maximum Aperture
- 9-Blade Iris

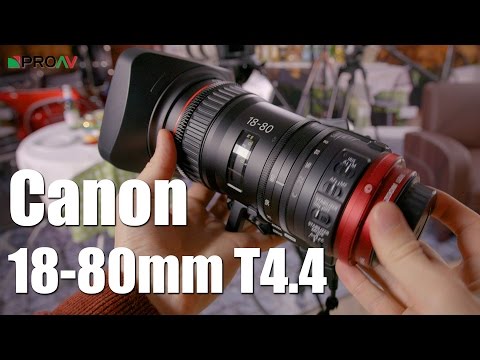

The Canon CN-E 18-80mm T4.4 Cinema Zoom is the result of Canon’s decades of expertise and experience in the field of optical design. It offers performance and a resolution capacity that connects to 4K image registration for recordings with an exceptionally high quality.
The Canon CN-E18-80mm is designed for cameras fitted with a single wide format sensor. This latest addition has the perfect balance between superior precision and quality and gives you the power to capture incredible images. Documentary and film makers can work dynamically thanks to the effortless switching between manual and autofocus and zooming at maximum zoom speed. The CN-E 18-80mm T4.4 Cinema Zoom comes with the Canon ZSG-C10 Zoom Grip.
Attention: Incompatible with Canon extenders! Attention: Not for full frame (only S35, APS-C). Autofocus is incompatible with DSLR bodies.
Mount Type |
EF |
Focal Length |
18 to 80 mm |
Zoom Ratio |
4.4x |
Image Circle |
31.4 mm |
Coverage |
Super 35 / APS-C |
Maximum Relative Aperture |
T4.4 (f/4) |
Number of Aperture Blades |
9 |
Angle of View |
24.6 x 13.8mm Imaging Area (1.78:1 Aspect Ratio):
68.7° x 41.9° at 18mm
17.5° x 9.9° at 80mm
26.2 x 13.8mm Imaging Area (1.9:1 Aspect Ratio):
72.1° x 41.9° at 18 mm
18.6° x 9.9° at 80 mm |
Minimum Object Distance |
1.7' (0.5 m) |
Object Dimensions at M.O.D. |
24.6 x 13.8mm Imaging Area (1.78:1 Aspect Ratio):
17.1 x 9.6" (43.4 x 24.3 cm) at 18mm
3.7 x 2.1" (9.5 x 5.3 cm) at 80mm
26.2 x 13.8mm Imaging Area (1.9:1 Aspect Ratio):
18.2 x 9.6" (46.2 x 24.3 cm) at 18 mm
4.0 x 2.1" (10.1 x 5.3 cm) at 80 mm |
Front Lens Diameter |
84 mm |
Filter Thread |
77 mm |
Dimensions |
3.7 x 4.2 x 7.2" (9.34 x 10.72 x 18.23 cm) |
Weight |
2.65 lb (1.2 kg) |
